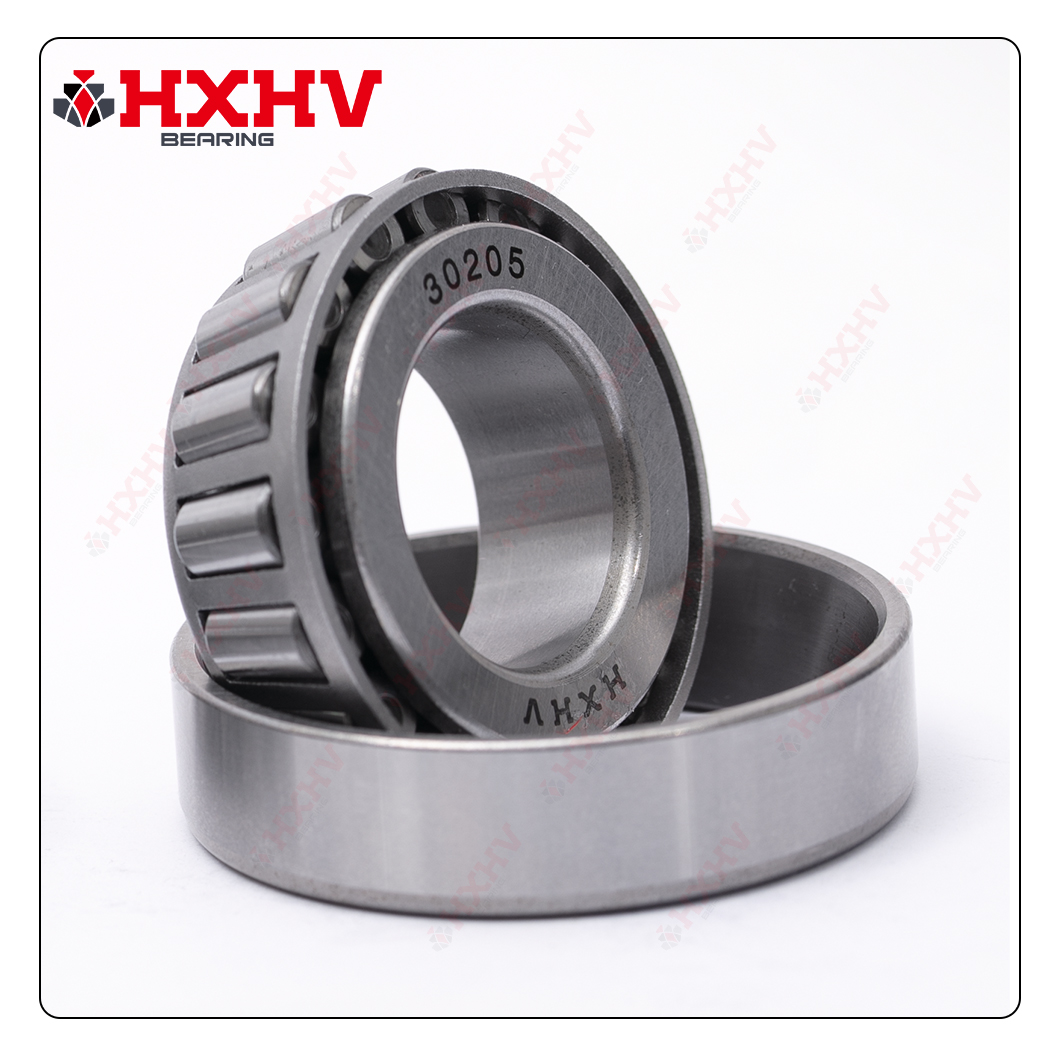

30205 HXHV Single Row Tapered Roller Bearing

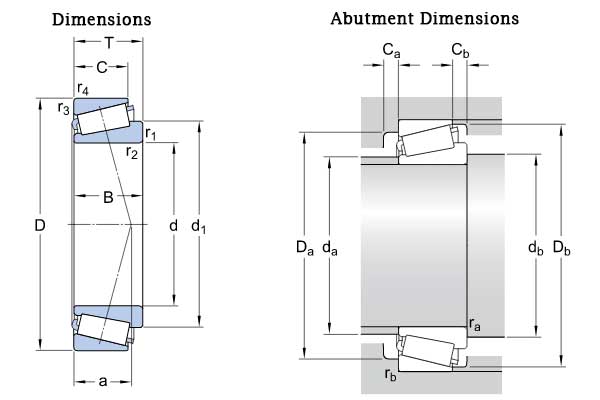

| Dimensions | |||
| d | 25 | mm | |
| D | 52 | mm | |
| T | 16.25 | mm | |
| d1 | ≈ | 38 | mm |
| B | 15 | mm | |
| C | 13 | mm | |
| r1,2 | min. | 1 | mm |
| r3,4 | min. | 1 | mm |
| a | 12.33 | mm | |
| Abutment Dimensions | |||
| da | max. | 32 | mm |
| db | min. | 31.5 | mm |
| Da | min. | 44 | mm |
| Da | max. | 46 | mm |
| Db | min. | 48 | mm |
| Ca | min. | 2 | mm |
| Cb | min. | 3 | mm |
| ra | max. | 1 | mm |
| rb | max. | 1 | mm |
| Calculation data | |||
| Basic dynamic load rating | C | 38.1 | kN |
| Basic static load rating | C0 | 33.5 | kN |
| Fatigue load limit | Pu | 3.45 | kN |
| Reference speed | 11000 | r/min | |
| Limiting speed | 13000 | r/min | |
| Calculation factor | e | 0.37 | |
| Calculation factor | Y | 1.6 | |
| Calculation factor | Y0 | 0.9 | |
| Mass bearing | 0.15 | kg | |
