HXHV Self-aligning ball bearings 1309 with steel retainer

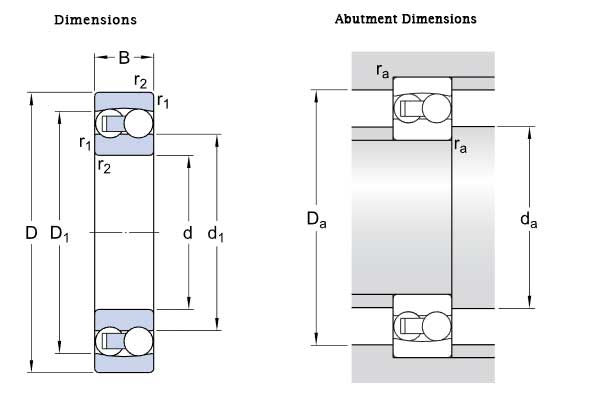

| Dimensions | |
| d | 45 mm |
| D | 100 mm |
| B | 25 mm |
| d1(≈) | 67.71 mm |
| D1(≈) | 87.8 mm |
| r1,2(min.) | 1.5 mm |
| Abutment dimensions | |
| da(min.) | 54 mm |
| Da(max.) | 91 mm |
| ra(max.) | 1.5 mm |
| Calculation data | |
| Basic dynamic load rating(C) | 39 kN |
| Basic static load rating(C0) | 13.4 kN |
| Fatigue load limit(Pu) | 0.7 kN |
| Reference speed() | 12000 r/min |
| Limiting speed() | 8500 r/min |
| Permissible angular misalignment(α) | 3 ° |
| Calculation factor(kr) | 0.04 |
| Calculation factor(e) | 0.23 |
| Calculation factor(Y0) | 2.8 |
| Calculation factor(Y1) | 2.7 |
| Calculation factor(Y2) | 4.2 |
| Weight | 0.96 kg |
