HXVH Single Direction Thrust Ball Bearings

Short Description:

Inner Diameter (ID) :10mm to 1400mm
Outer Diameter (OD): 24mm to 1630mm
Brand: HXHV , Non Brand


  • SERVICE: Customized Service / Warranty / Certificate / Competitive Price & quality / Catalogs / Fast Delivery / Quick Reply
  • Payment: T/T, Paypal, Western Union, Credit Card, Trade Assurance
  • Optional Brand:: Kaydon, SKF, NSK, KOYO, TIMKEN, FAG, NSK, HIWIN, THK, etc.
  • Product Detail

    Get Price Now

    Bearing's material is chrome steel.
    Please contact us for the latest price.

    Please contact us for the latest price.

    111

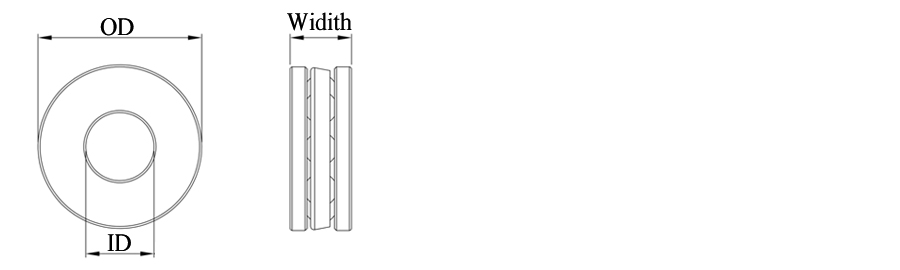

    Model Number ID OD Width Dynamic axial load Static axial load Max Speed
    51100 10 mm 24 mm 9 mm 8.71 kN 12.2 kN 13000 r/min
    51200 10 mm 26 mm 11 mm 12.7 kN 18.6 kN 11000 r/min
    51101 12 mm 26 mm 9 mm 10.4 kN 16.6 kN 13000 r/min
    51201 12 mm 28 mm 11 mm 13.3 kN 20.8 kN 11000 r/min
    53201 12 mm 28 mm 11.4 mm 13.3 kN 20.8 kN 11000 r/min
    51102 15 mm 28 mm 9 mm 10.6 kN 18.3 kN 12000 r/min
    51202 15 mm 32 mm 12 mm 15.9 kN 25 kN 10000 r/min
    53202 15 mm 32 mm 13.3 mm 15.9 kN 25 kN 10000 r/min
    51103 17 mm 30 mm 9 mm 11.4 kN 21.2 kN 12000 r/min
    51203 17 mm 35 mm 12 mm 16.3 kN 27 kN 9500 r/min
    53203 17 mm 35 mm 13.2 mm 16.3 kN 27 kN 9500 r/min
    51104 20 mm 35 mm 10 mm 15.1 kN 29 kN 10000 r/min
    51204 20 mm 40 mm 14 mm 21.2 kN 37.5 kN 8000 r/min
    53204 20 mm 40 mm 14.7 mm 21.2 kN 37.5 kN 8000 r/min
    51105 25 mm 42 mm 11 mm 18.2 kN 39 kN 9000 r/min
    51205 25 mm 47 mm 15 mm 26.5 kN 50 kN 7500 r/min
    53205 25 mm 47 mm 16.7 mm 26.5 kN 50 kN 7000 r/min
    51305 25 mm 52 mm 18 mm 34.5 kN 60 kN 6300 r/min
    51405 25 mm 60 mm 24 mm 42.3 kN 67 kN 5000 r/min
    51106 30 mm 47 mm 11 mm 19 kN 43 kN 8500 r/min
    51206 30 mm 52 mm 16 mm 25.1 kN 51 kN 6700 r/min
    53206 30 mm 52 mm 17.8 mm 25.1 kN 51 kN 6300 r/min
    51306 30 mm 60 mm 21 mm 35.8 kN 65.5 kN 5300 r/min
    53306 30 mm 60 mm 22.6 mm 35.8 kN 65.5 kN 5300 r/min
    51406 30 mm 70 mm 28 mm 70.2 kN 122 kN 4300 r/min
    51107 35 mm 52 mm 12 mm 19.9 kN 51 kN 7500 r/min
    51207 35 mm 62 mm 18 mm 35.1 kN 73.5 kN 5600 r/min
    53207 35 mm 62 mm 19.9 mm 35.1 kN 73.5 kN 5600 r/min
    51307 35 mm 68 mm 24 mm 49.4 kN 96.5 kN 4800 r/min
    53307 35 mm 68 mm 25.6 mm 49.4 kN 96.5 kN 4500 r/min
    51407 35 mm 80 mm 32 mm 76.1 kN 137 kN 3600 r/min
    51108 40 mm 60 mm 13 mm 25.5 kN 63 kN 7000 r/min
    51208 40 mm 68 mm 19 mm 44.2 kN 96.5 kN 5300 r/min
    53208 40 mm 68 mm 20.3 mm 44.2 kN 96.5 kN 5300 r/min
    51308 40 mm 78 mm 26 mm 61.8 kN 122 kN 4300 r/min
    53308 40 mm 78 mm 28.5 mm 61.8 kN 122 kN 4000 r/min
    51408 40 mm 90 mm 36 mm 95.6 kN 183 kN 3400 r/min
    53408 40 mm 90 mm 38.2 mm 95.6 kN 183 kN 3200 r/min
    51109 45 mm 65 mm 14 mm 26.5 kN 69.5 kN 6300 r/min
    51209 45 mm 73 mm 20 mm 39 kN 86.5 kN 5000 r/min
    53209 45 mm 73 mm 21.3 mm 39 kN 86.5 kN 4800 r/min
    51309 45 mm 85 mm 28 mm 76.1 kN 153 kN 4000 r/min
    53309 45 mm 85 mm 30.1 mm 76.1 kN 153 kN 3800 r/min
    51409 45 mm 100 mm 39 mm 124 kN 240 kN 3000 r/min
    51110 50 mm 70 mm 14 mm 27 kN 75 kN 6300 r/min
    51210 50 mm 78 mm 22 mm 49.4 kN 116 kN 4500 r/min
    53210 50 mm 78 mm 23.5 mm 49.4 kN 116 kN 4500 r/min
    51310 50 mm 95 mm 31 mm 81.9 kN 170 kN 3600 r/min
    53310 50 mm 95 mm 34.3 mm 81.9 kN 170 kN 3400 r/min
    51410 50 mm 110 mm 43 mm 159 kN 340 kN 2800 r/min
    53410 50 mm 110 mm 45.6 mm 159 kN 340 kN 2600 r/min
    51111 55 mm 78 mm 16 mm 30.2 kN 81.5 kN 5300 r/min
    51211 55 mm 90 mm 25 mm 58.5 kN 134 kN 4000 r/min
    53211 55 mm 90 mm 27.3 mm 58.5 kN 134 kN 3800 r/min
    51311 55 mm 105 mm 35 mm 101 kN 224 kN 3200 r/min
    53311 55 mm 105 mm 39.3 mm 101 kN 224 kN 3000 r/min
    51411 55 mm 120 mm 48 mm 195 kN 400 kN 2400 r/min
    53411 55 mm 120 mm 50.5 mm 195 kN 400 kN 2400 r/min
    51112 60 mm 85 mm 17 mm 41.6 kN 122 kN 5000 r/min
    51212 60 mm 95 mm 26 mm 59.2 kN 140 kN 3800 r/min
    53212 60 mm 95 mm 28 mm 59.2 kN 140 kN 3600 r/min
    51312 60 mm 110 mm 35 mm 101 kN 224 kN 3000 r/min
    53312 60 mm 110 mm 38.3 mm 101 kN 224 kN 3000 r/min
    51412 M 60 mm 130 mm 51 mm 199 kN 430 kN 2200 r/min
    53412 M 60 mm 130 mm 54 mm 199 kN 430 kN 2200 r/min
    51113 65 mm 90 mm 18 mm 37.7 kN 108 kN 4800 r/min
    51213 65 mm 100 mm 27 mm 60.5 kN 150 kN 3600 r/min
    53213 65 mm 100 mm 28.7 mm 60.5 kN 150 kN 3600 r/min
    51313 65 mm 115 mm 36 mm 106 kN 240 kN 3000 r/min
    53313 65 mm 115 mm 39.4 mm 106 kN 240 kN 2800 r/min
    51413 M 65 mm 140 mm 56 mm 216 kN 490 kN 2200 r/min
    51114 70 mm 95 mm 18 mm 40.3 kN 120 kN 4500 r/min
    51214 70 mm 105 mm 27 mm 62.4 kN 160 kN 3600 r/min
    53214 70 mm 105 mm 27 mm 62.4 kN 160 kN 3600 r/min
    51314 70 mm 125 mm 40 mm 135 kN 320 kN 2600 r/min
    53314 70 mm 125 mm 44.2 mm 135 kN 320 kN 2600 r/min
    51414 M 70 mm 150 mm 60 mm 234 kN 550 kN 2000 r/min
    53414 M 70 mm 150 mm 63.6 mm 234 kN 550 kN 2000 r/min
    51115 75 mm 100 mm 19 mm 44.2 kN 134 kN 4300 r/min
    51215 75 mm 110 mm 27 mm 63.7 kN 170 kN 3400 r/min
    53215 75 mm 110 mm 28.3 mm 63.7 kN 170 kN 3400 r/min
    51315 75 mm 135 mm 44 mm 163 kN 390 kN 2400 r/min
    53315 75 mm 135 mm 48.1 mm 163 kN 390 kN 2400 r/min
    51415 M 75 mm 160 mm 65 mm 251 kN 610 kN 1800 r/min
    53415 M 75 mm 160 mm 69 mm 251 kN 610 kN 1800 r/min
    51116 80 mm 105 mm 19 mm 44.9 kN 140 kN 4300 r/min
    51216 80 mm 115 mm 28 mm 76.1 kN 208 kN 3400 r/min
    53216 80 mm 115 mm 29.5 mm 76.1 kN 208 kN 3200 r/min
    51316 80 mm 140 mm 44 mm 159 kN 390 kN 2400 r/min
    53316 80 mm 140 mm 47.6 mm 159 kN 390 kN 2200 r/min
    51416 M 80 mm 170 mm 68 mm 302 kN 750 kN 1700 r/min
    51117 85 mm 110 mm 19 mm 44.9 kN 146 kN 4300 r/min
    51217 85 mm 125 mm 31 mm 97.5 kN 275 kN 3000 r/min
    53217 85 mm 125 mm 33.1 mm 97.5 kN 275 kN 3000 r/min
    51317 85 mm 150 mm 49 mm 174 kN 405 kN 2200 r/min
    53317 85 mm 150 mm 53.1 mm 174 kN 405 kN 2000 r/min
    51417 M 85 mm 180 mm 72 mm 286 kN 750 kN 1600 r/min
    51118 90 mm 120 mm 22 mm 59.2 kN 208 kN 3800 r/min
    51218 90 mm 135 mm 35 mm 112 kN 290 kN 2800 r/min
    53218 90 mm 135 mm 38.5 mm 112 kN 290 kN 2600 r/min
    51318 90 mm 155 mm 50 mm 182 kN 440 kN 2200 r/min
    53318 90 mm 155 mm 54.6 mm 182 kN 440 kN 2000 r/min
    51418 M 90 mm 190 mm 77 mm 307 kN 815 kN 1500 r/min
    53418 M 90 mm 190 mm 81.2 mm 307 kN 815 kN 1500 r/min
    51120 100 mm 135 mm 25 mm 80.6 kN 265 kN 3200 r/min
    51220 100 mm 150 mm 38 mm 119 kN 325 kN 2400 r/min
    53220 100 mm 150 mm 40.9 mm 119 kN 325 kN 2400 r/min
    51320 100 mm 170 mm 55 mm 225 kN 570 kN 1900 r/min
    53320 100 mm 170 mm 59.2 mm 225 kN 570 kN 1800 r/min
    51420 M 100 mm 210 mm 85 mm 371 kN 1060 kN 1400 r/min
    53420 M 100 mm 210 mm 90 mm 371 kN 1060 kN 1300 r/min
    51122 110 mm 145 mm 25 mm 83.2 kN 285 kN 3200 r/min
    51222 110 mm 160 mm 38 mm 125 kN 365 kN 2400 r/min
    53222 110 mm 160 mm 40.2 mm 125 kN 365 kN 2400 r/min
    51322 M 110 mm 190 mm 63 mm 291 kN 800 kN 1700 r/min
    53322 M 110 mm 190 mm 67.2 mm 291 kN 800 kN 1600 r/min
    51422 M 110 mm 230 mm 95 mm 410 kN 1220 kN 1300 r/min
    51124 120 mm 155 mm 25 mm 85.2 kN 305 kN 3000 r/min
    51224 120 mm 170 mm 39 mm 127 kN 390 kN 2200 r/min
    51324 M 120 mm 210 mm 70 mm 332 kN 980 kN 1500 r/min
    53324 M 120 mm 210 mm 74.1 mm 332 kN 980 kN 1500 r/min
    51424 M 120 mm 250 mm 102 mm 432 kN 1320 kN 1100 r/min
    51126 130 mm 170 mm 30 mm 119 kN 440 kN 2600 r/min
    51226 130 mm 190 mm 45 mm 186 kN 585 kN 2000 r/min
    53226 130 mm 190 mm 47.9 mm 186 kN 585 kN 1800 r/min
    51326 M 130 mm 225 mm 75 mm 351 kN 1060 kN 1400 r/min
    51426 M 130 mm 270 mm 110 mm 520 kN 1730 kN 1000 r/min
    51128 140 mm 180 mm 31 mm 111 kN 440 kN 2600 r/min
    51228 140 mm 200 mm 46 mm 208 kN 630 kN 1900 r/min
    53228 140 mm 200 mm 48.6 mm 190 kN 620 kN 1800 r/min
    51328 M 140 mm 240 mm 80 mm 416 kN 1370 kN 1300 r/min
    51428 M 140 mm 280 mm 112 mm 520 kN 1730 kN 1000 r/min
    51130 M 150 mm 190 mm 31 mm 111 kN 440 kN 2400 r/min
    51230 M 150 mm 215 mm 50 mm 247 kN 800 kN 1800 r/min
    51330 M 150 mm 250 mm 80 mm 423 kN 1460 kN 1300 r/min
    51430 M 150 mm 300 mm 120 mm 559 kN 1960 kN 950 r/min
    51132 M 160 mm 200 mm 31 mm 112 kN 465 kN 2400 r/min
    51232 M 160 mm 225 mm 51 mm 247 kN 800 kN 1700 r/min
    51332 M 160 mm 270 mm 87 mm 442 kN 1600 kN 1200 r/min
    51134 M 170 mm 215 mm 34 mm 133 kN 540 kN 2200 r/min
    51234 M 170 mm 240 mm 55 mm 281 kN 980 kN 1600 r/min
    51334 M 170 mm 280 mm 87 mm 449 kN 1700 kN 1100 r/min
    51136 M 180 mm 225 mm 34 mm 135 kN 570 kN 2200 r/min
    51236 M 180 mm 250 mm 56 mm 296 kN 1080 kN 1500 r/min
    51336 M 180 mm 300 mm 95 mm 520 kN 2000 kN 1100 r/min
    51138 M 190 mm 240 mm 37 mm 172 kN 710 kN 2000 r/min
    51238 M 190 mm 270 mm 62 mm 338 kN 1250 kN 1400 r/min
    51338 M 190 mm 320 mm 105 mm 559 kN 2200 kN 950 r/min
    51140 M 200 mm 250 mm 37 mm 168 kN 710 kN 1900 r/min
    51240 M 200 mm 280 mm 62 mm 332 kN 1250 kN 1400 r/min
    51340 M 200 mm 340 mm 110 mm 624 kN 2600 kN 900 r/min
    51144 M 220 mm 270 mm 37 mm 178 kN 800 kN 1900 r/min
    51244 M 220 mm 300 mm 63 mm 358 kN 1460 kN 1300 r/min
    51148 M 240 mm 300 mm 45 mm 234 kN 1040 kN 1600 r/min
    51248 M 240 mm 340 mm 78 mm 449 kN 1960 kN 1100 r/min
    51152 M 260 mm 320 mm 45 mm 238 kN 1100 kN 1500 r/min
    51252 M 260 mm 360 mm 79 mm 488 kN 2240 kN 1100 r/min
    51156 M 280 mm 350 mm 53 mm 319 kN 1460 kN 1300 r/min
    51256 M 280 mm 380 mm 80 mm 488 kN 2320 kN 1000 r/min
    51160 M 300 mm 380 mm 62 mm 364 kN 1760 kN 1200 r/min
    51260 M 300 mm 420 mm 95 mm 585 kN 3000 kN 850 r/min
    51164 M 320 mm 400 mm 63 mm 371 kN 1860 kN 1100 r/min
    51264 F 320 mm 440 mm 95 mm 572 kN 3000 kN 850 r/min
    51264 M 320 mm 440 mm 95 mm 572 kN 3000 kN 850 r/min
    51168 M 340 mm 420 mm 64 mm 377 kN 1960 kN 1100 r/min
    51268 F 340 mm 460 mm 96 mm 605 kN 3200 kN 800 r/min
    51368 F 340 mm 540 mm 160 mm 1040 kN 5850 kN 560 r/min
    51172 F 360 mm 440 mm 65 mm 390 kN 2080 kN 1100 r/min
    59172 F 360 mm 440 mm 48 mm 255 kN 1500 kN 1200 r/min
    51272 F 360 mm 500 mm 110 mm 741 kN 4150 kN 750 r/min
    351793 380 mm 460 mm 36 mm 186 kN 1140 kN 1400 r/min
    51176 F 380 mm 460 mm 65 mm 397 kN 2200 kN 1000 r/min
    59176 F 380 mm 460 mm 48 mm 255 kN 1530 kN 1200 r/min
    51276 F 380 mm 520 mm 112 mm 728 kN 4150 kN 700 r/min
    51080 F 400 mm 440 mm 30 mm 124 kN 900 kN 1600 r/min
    51180 F 400 mm 480 mm 65 mm 403 kN 2280 kN 1000 r/min
    59180 F 400 mm 480 mm 48 mm 260 kN 1630 kN 1200 r/min
    51280 F 400 mm 540 mm 112 mm 761 kN 4500 kN 700 r/min
    51084 F 420 mm 460 mm 30 mm 125 kN 880 kN 1600 r/min
    51184 F 420 mm 500 mm 65 mm 410 kN 2400 kN 1000 r/min
    59184 F 420 mm 500 mm 48 mm 265 kN 1700 kN 1200 r/min
    51284 F 420 mm 580 mm 130 mm 884 kN 5500 kN 600 r/min
    51088 F 440 mm 480 mm 30 mm 127 kN 915 kN 1500 r/min
    51188 F 440 mm 540 mm 80 mm 527 kN 3250 kN 850 r/min
    59188 F 440 mm 540 mm 60 mm 238 kN 1500 kN 1000 r/min
    51288 F 440 mm 600 mm 130 mm 904 kN 5700 kN 600 r/min
    51092 F 460 mm 500 mm 30 mm 130 kN 1040 kN 1500 r/min
    51192 F 460 mm 560 mm 80 mm 527 kN 3250 kN 800 r/min
    59192 F 460 mm 560 mm 60 mm 242 kN 1530 kN 950 r/min
    51292 F 460 mm 620 mm 130 mm 923 kN 5850 kN 600 r/min
    51096 F 480 mm 520 mm 30 mm 133 kN 1000 kN 1500 r/min
    51196 F 480 mm 580 mm 80 mm 540 kN 3550 kN 800 r/min
    59196 F 480 mm 580 mm 60 mm 442 kN 2800 kN 950 r/min
    51296 F 480 mm 650 mm 135 mm 995 kN 6550 kN 560 r/min
    510/500 F 500 mm 540 mm 30 mm 133 kN 1120 kN 1400 r/min
    511/500 F 500 mm 600 mm 80 mm 553 kN 3600 kN 800 r/min
    591/500 F 500 mm 600 mm 60 mm 449 kN 2900 kN 950 r/min
    512/500 F 500 mm 670 mm 135 mm 1010 kN 6800 kN 530 r/min
    510/530 F 530 mm 580 mm 38 mm 203 kN 1600 kN 1200 r/min
    511/530 F 530 mm 640 mm 85 mm 650 kN 4400 kN 750 r/min
    591/530 F 530 mm 640 mm 67 mm 468 kN 3150 kN 850 r/min
    510/560 F 560 mm 610 mm 38 mm 203 kN 1660 kN 1200 r/min
    511/560 F 560 mm 670 mm 85 mm 650 kN 4650 kN 700 r/min
    591/560 F 560 mm 670 mm 67 mm 475 kN 3250 kN 800 r/min
    510/600 F 600 mm 650 mm 38 mm 212 kN 1800 kN 1100 r/min
    511/600 F 600 mm 710 mm 85 mm 663 kN 4800 kN 700 r/min
    350769 600 mm 800 mm 90 mm 676 kN 5000 kN 630 r/min
    BD1-8000 600 mm 870 mm 118 mm 1120 kN 8000 kN 300 r/min
    510/630 F 630 mm 680 mm 38 mm 221 kN 1930 kN 1100 r/min
    511/630 F 630 mm 750 mm 95 mm 728 kN 5400 kN 630 r/min
    591/630 F 630 mm 750 mm 73 mm 540 kN 4000 kN 750 r/min
    511/670 F 670 mm 800 mm 105 mm 852 kN 6700 kN 560 r/min
    511/670 M 670 mm 800 mm 105 mm 852 kN 6700 kN 560 r/min
    591/670 F 670 mm 800 mm 78 mm 540 kN 4150 kN 670 r/min
    510/710 F 710 mm 780 mm 53 mm 358 kN 2850 kN 850 r/min
    511/710 F 710 mm 850 mm 112 mm 936 kN 7650 kN 530 r/min
    591/710 JR 710 mm 850 mm 85 mm 676 kN 5400 kN 630 r/min
    510/750 F 750 mm 820 mm 53 mm 364 kN 3050 kN 850 r/min
    511/750 M 750 mm 900 mm 120 mm 1010 kN 8650 kN 480 r/min
    591/750 M 750 mm 900 mm 90 mm 741 kN 6200 kN 600 r/min
    510/800 F 800 mm 870 mm 53 mm 371 kN 3200 kN 800 r/min
    591/800 M 800 mm 950 mm 90 mm 761 kN 6550 kN 560 r/min
    510/850 M 850 mm 920 mm 53 mm 377 kN 3450 kN 800 r/min
    511/850 F 850 mm 1000 mm 120 mm 1060 kN 9500 kN 450 r/min
    591/850 M 850 mm 1000 mm 90 mm 761 kN 6800 kN 560 r/min
    510/900 M 900 mm 980 mm 63 mm 527 kN 4900 kN 670 r/min
    511/900 F 900 mm 1060 mm 130 mm 1120 kN 10400 kN 430 r/min
    511/900 M 900 mm 1060 mm 130 mm 1120 kN 10400 kN 430 r/min
    591/900 M 900 mm 1060 mm 95 mm 630 kN 7650 kN 500 r/min
    510/950 M 950 mm 1080 mm 63 mm 540 kN 5100 kN 670 r/min
    511/950 F 950 mm 1120 mm 135 mm 1330 kN 12000 kN 400 r/min
    591/950 M 950 mm 1120 mm 103 mm 852 kN 8150 kN 480 r/min
    510/1000 M 1000 mm 1090 mm 70 mm 572 kN 5500 kN 600 r/min
    511/1000 F 1000 mm 1180 mm 140 mm 1330 kN 13200 kN 380 r/min
    591/1000 M 1000 mm 1180 mm 109 mm 923 kN 9150 kN 430 r/min
    510/1060 M 1060 mm 1150 mm 70 mm 572 kN 5850 kN 600 r/min
    511/1060 M 1060 mm 1250 mm 150 mm 1430 kN 15000 kN 340 r/min
    591/1060 F 1060 mm 1250 mm 115 mm 1010 kN 10400 kN 400 r/min
    511/1120 F 1120 mm 1320 mm 160 mm 1530 kN 16300 kN 320 r/min
    511/1180 F 1180 mm 1400 mm 175 mm 1780 kN 20000 kN 280 r/min
    BD1B 351890 A 1380 mm 1535 mm 130 mm 1330 kN 16300 kN 340 r/min
    511/1400 F 1400 mm 1630 mm 180 mm 1820 kN 22000 kN 260 r/m








  • Previous:
  • Next:

  • To sent you the suitable price asap, we must know your basic requirements as below.

    Bearing’s model number / quantity / material and any other special requirement on packing.

    Sucs as: 608zz / 5000 pieces / chrome steel material



    Write your message here and send it to us

    Related Products
