NJ 214 ECM HXHV Single Row Cylindrical Roller Bearing

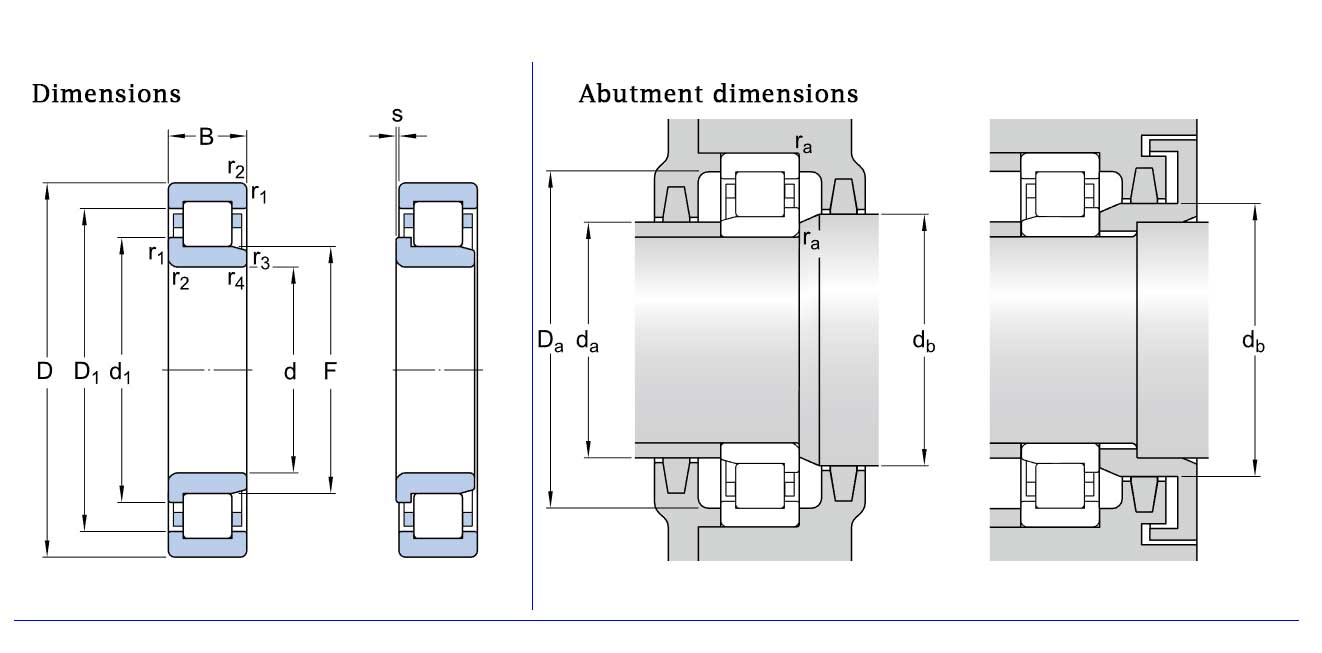

| Dimensions | |
| d | 70 mm |
| D | 125 mm |
| B | 24 mm |
| d1≈ | 89.4 mm |
| D1≈ | 108.3 mm |
| F | 83.5 mm |
| r1,2 (min.) | 1.5 mm |
| r3,4 (min.) | 1.5 mm |
| Abutment dimensions | |
| da (min.) | 79 mm |
| da (max.) | 81 mm |
| db (min.) | 92 mm |
| Da (max.) | 115.4 mm |
| ra (max.) | 1.5 mm |
| Calculation data | |
| Basic dynamic load rating (C) | 137 kN |
| Basic static load rating (C0) | 137 kN |
| Fatigue load limit (Pu) | 18 kN |
| Reference speed | 6000 r/min |
| Limiting speed | 6300 r/min |
| Calculation factor (kr) | 0.15 |
| Limiting value (e) | 0.2 |
| Axial load factor (Y) | 0.6 |
| Mass bearing | 1.32 kg |
